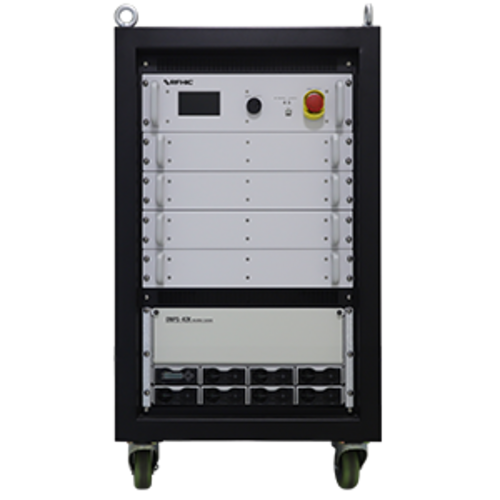

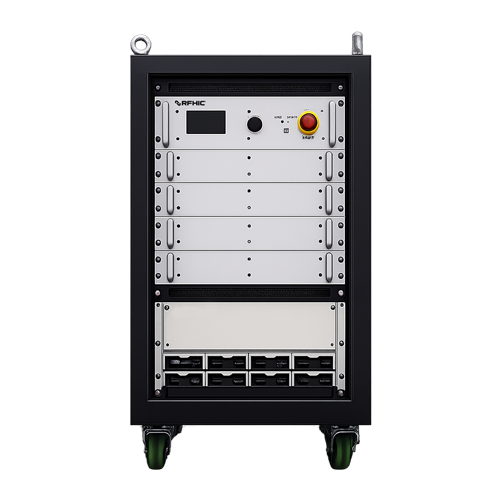

RIK138K0-40T
설명
The RIK138K0-40T is a high-power microwave generator (SSPA) utilizing cutting-edge GaN on SiC HEMT technology, delivering high breakdown voltage and exceptional power efficiency. This product is engineered to meet the stringent and precise requirements of modern particle accelerators and synchrotron light sources.
View Product Specification
Linear Accelerators
Microwave Assisted X-Ray Laser
Synchrotron Light Sources
Particle Accelerators
High-Power RF Systems
제품 사양
| Min Freq.(MHz) | 1299MHz |
|---|---|
| Max Freq.(MHz) | 1301MHz |
| Output Power(W) | 8000W |
| Power Gain(dB) | 59dB |
| Efficiency | 58% |
| VDC(V) | 50 |
| VAC(V) | 380 VAC |
| VSWR | 6:1 |
| Cooling | Water/Air |
| Line Connection | 3 Phase 4 Wire |
| Dimension(mm) | 600(W) ⅹ 1100(D) ⅹ 978(H) |
| Weight | 200kg |
