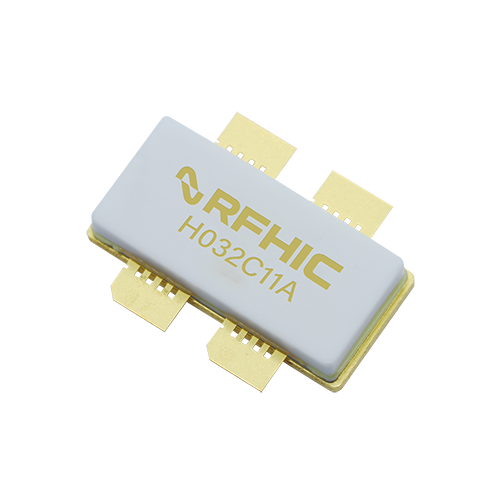

H032C11A
설명
RFHIC H032C11A는 3400~3600MHz 대역에서 동작하는 GaN on SiC(질화갈륨-탄화규소) 고전자이동도 트랜지스터(HEMT)입니다. 48V 동작에서 포화 출력 288W를 제공하며 고효율·고선형성을 구현하도록 설계되었습니다. WiMAX, LTE, WCDMA, GSM 무선통신 시스템에 적합합니다.
View Product Specification
WiMAX, LTE, WCDMA, GSM
Multi-Band, Multi-Mode
Multi-Carrier
High Efficiency Doherty Amplifier
제품 사양
| Min Freq.(MHz) | 3400MHz |
|---|---|
| Max Freq.(MHz) | 3600MHz |
| Typ Output Power(W) | 50W |
| Saturation Power(W) | 288W |
| Power Gain(dB) | 10.2dB |
| Efficiency | 44% |
| VDC(V) | 48 |
| Package | RF24010DKR3 |
| Package Type | Flange |
